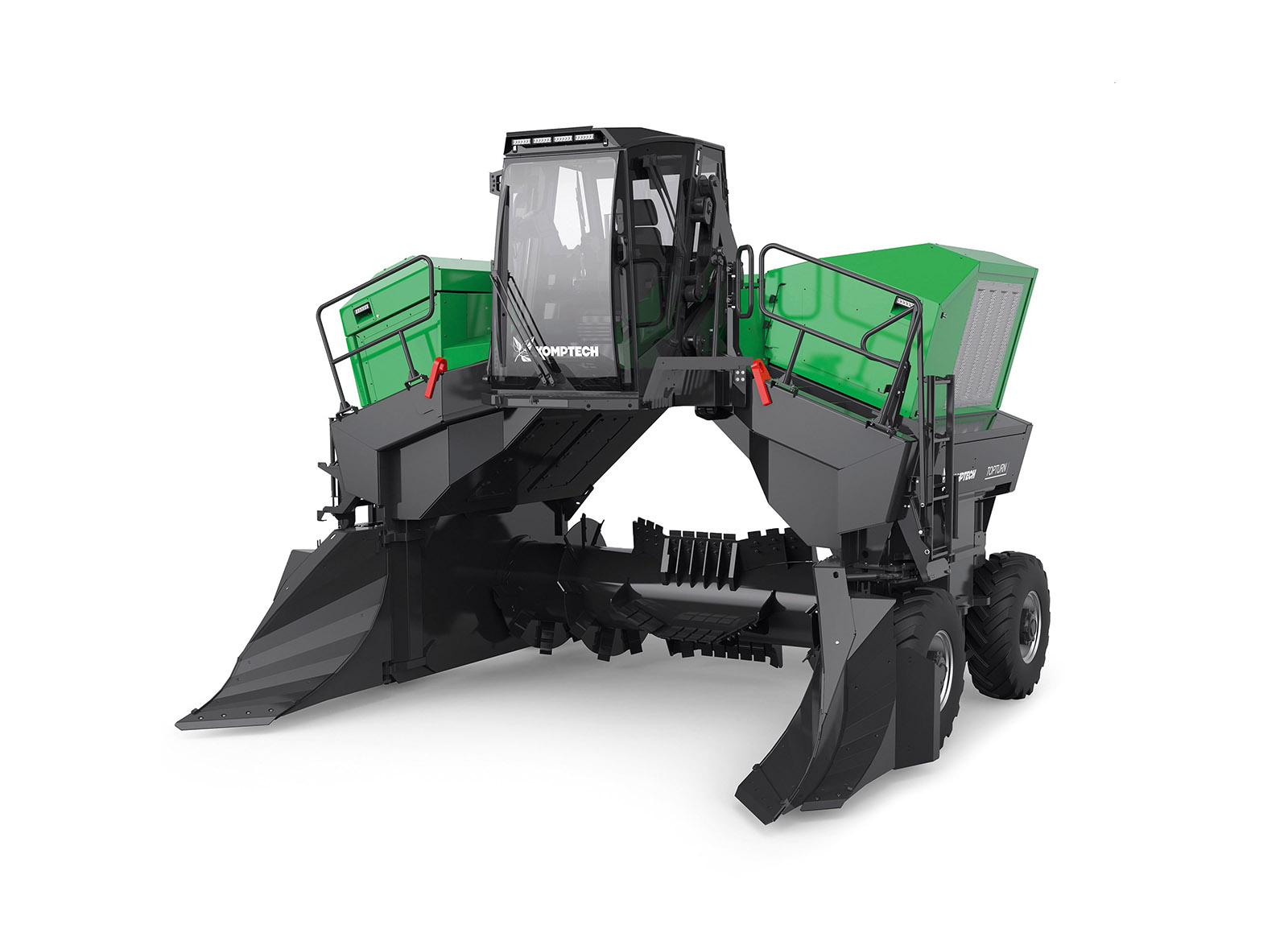

Windrow Turner Topturn X63

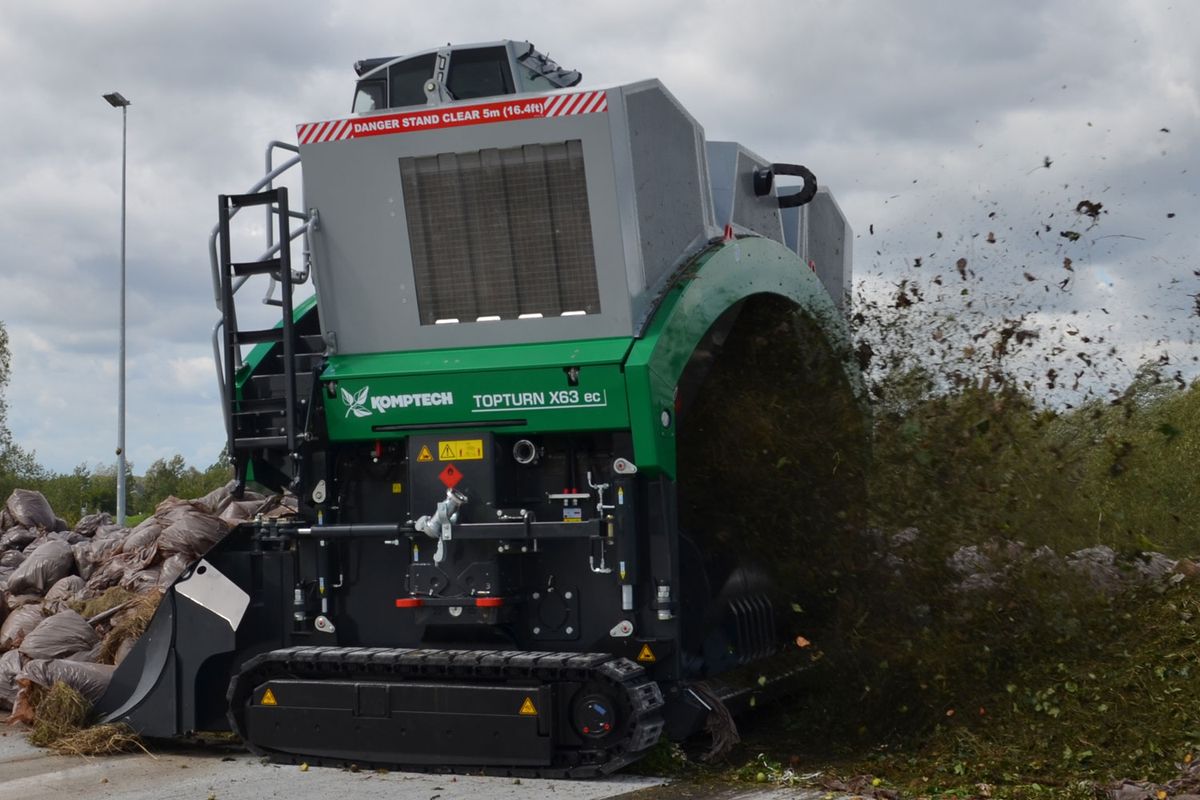

The new Topturn X63 as a successor of the X60 is designed for the most demanding tasks. Equipped with a more powerful engine and with an intake width of up to 6 metres, the X63 achieves a turning capacity of up to 4 500 cubic metres per hour. The combination of large drum with conveyor and thrower blades and the powerful drive ensures that the turner leaves the perfect windrow.

Call us to find out more
about our products and services.
Contact us
Not ready for a purchase ?
We have equipment for rent
shadow separator

Specifications

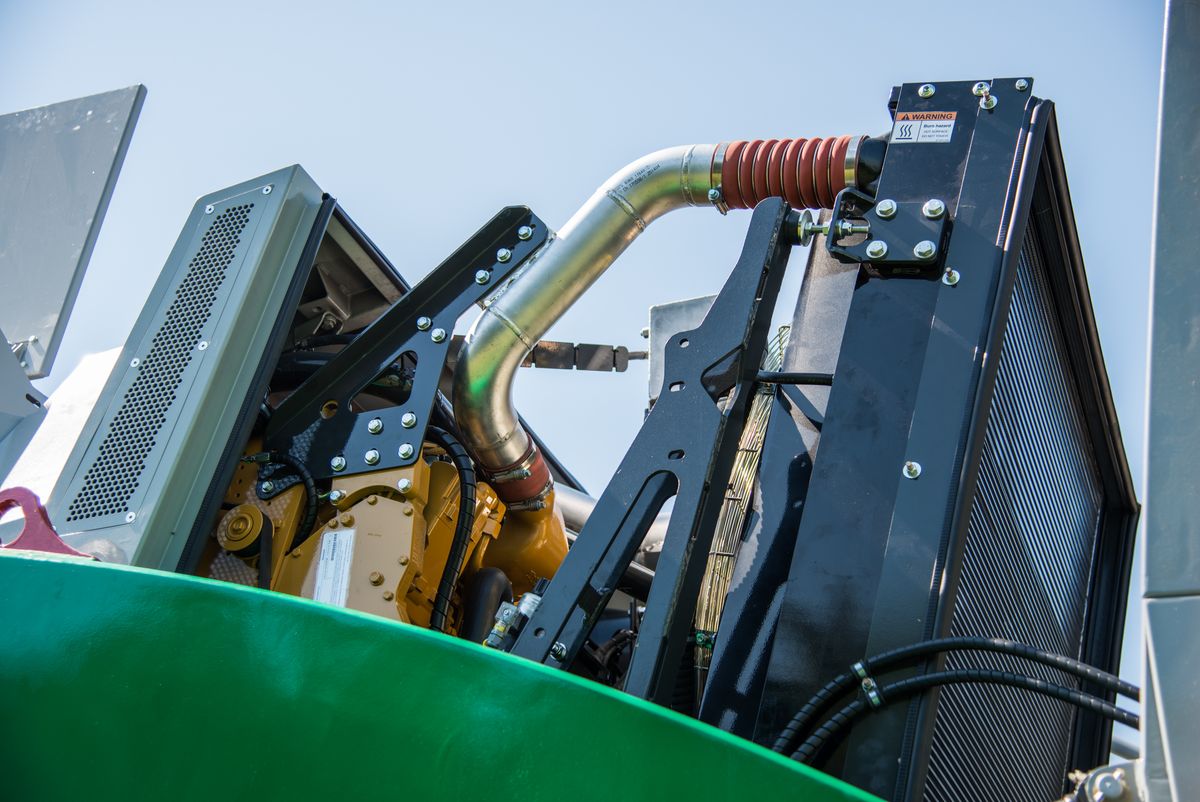

  • Motor: CAT® C9.3 Tier 4 Final 390 hp (287 kW)
  • Production: 5885 yd³/h (4 500 m³/h)
  • Drum Diameter: 4’ 7″ (1 400 mm)
  • RPM Drum: 195
  • Windrow width: 18’ 8″ (5.7 m)
  • Windrow height: 8’ 6″ (2.6 m)
  • Windrow cross-sect.: 65 sq. ft. (6.2 m²)
  • Weight: 41 200 lbs (18 700 kg)

Download

Product brochure Ault Catalogue

The new Topturn X63 as a successor of the X60 is designed for the most demanding tasks. Equipped with a more powerful engine and with an intake width of up to 6 metres, the X63 achieves a turning capacity of up to 4 500 cubic metres per hour. The combination of large drum with conveyor and thrower blades and the powerful drive ensures that the turner leaves the perfect windrow.
