Screeners S250
Specifications
- Motor: CAT/ Volvo 225 hp (209 kW)
- Hopper: 10 yd³ (13 m³)
- Principal conveyor: 48″ (1 200 mm)
- Net Conveyor 1: 36″ (900 mm)
- Net Conveyor 2: 36″ (900 mm)
- Net Conveyor 3: 36″ (900 mm)
- Length: 64’ 2″ (19.0 m)
- Width: 12’ (3.6 m)
- Height: 11’ 10″ (3.6 m)
- Weight: 88 200 lbs (40 000 kg)
Download

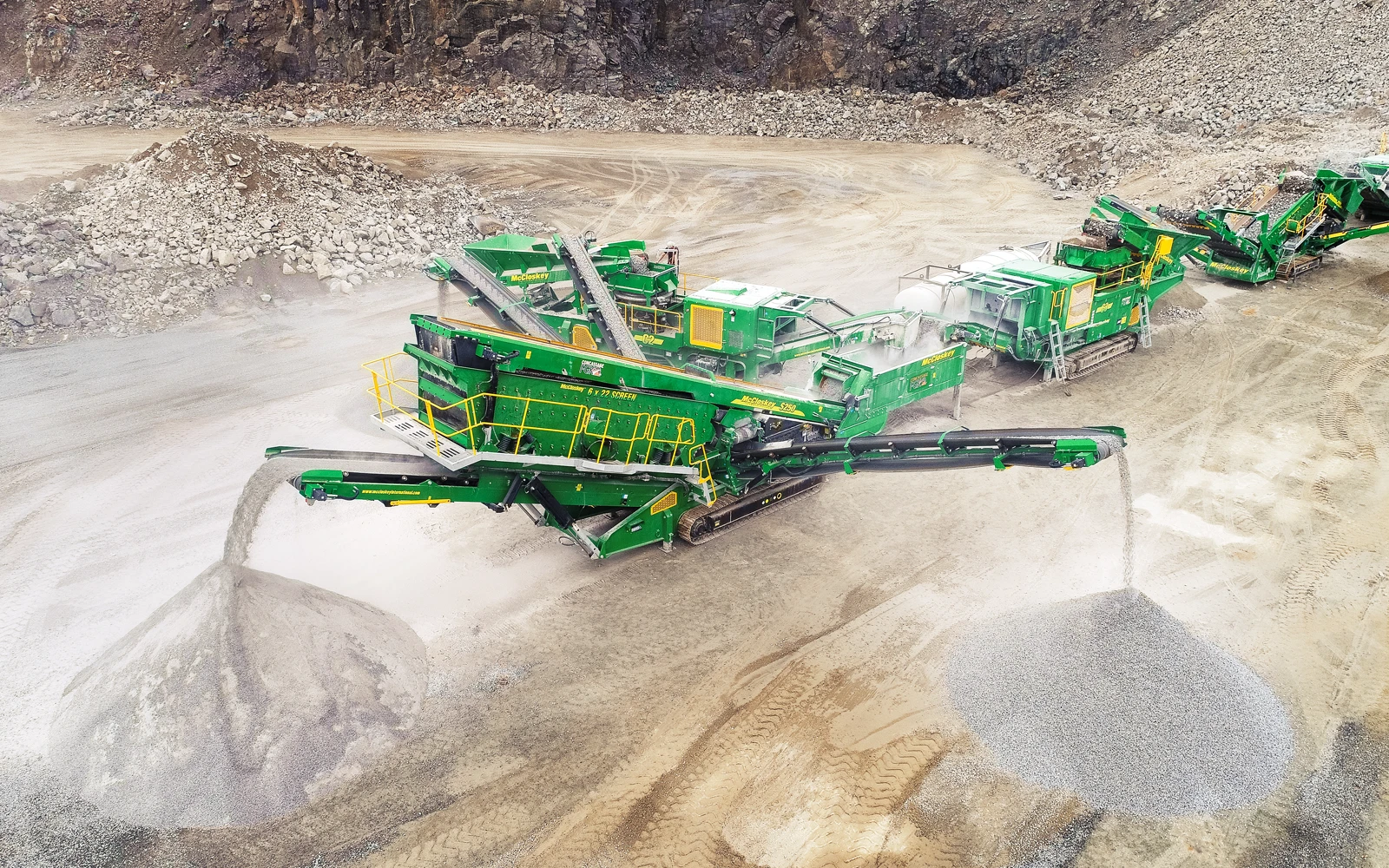

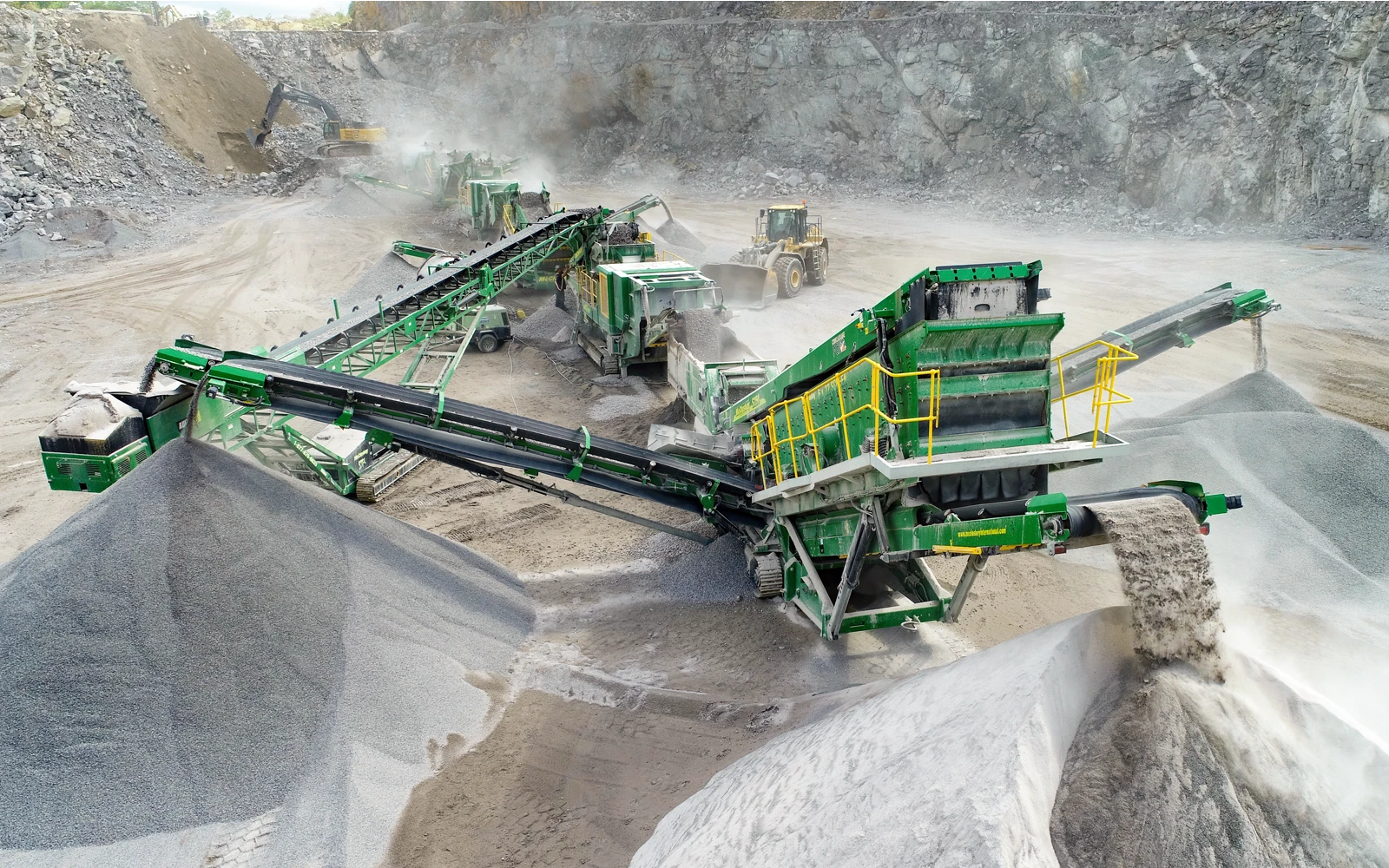

The S250 pushes the boundaries of production efficiency. It is one of the largest mobile screeners available, with its 6x22 high-energy screenbox, available in two-deck or three-deck, making it excellent for sizing plant mix.
