Crushers J45

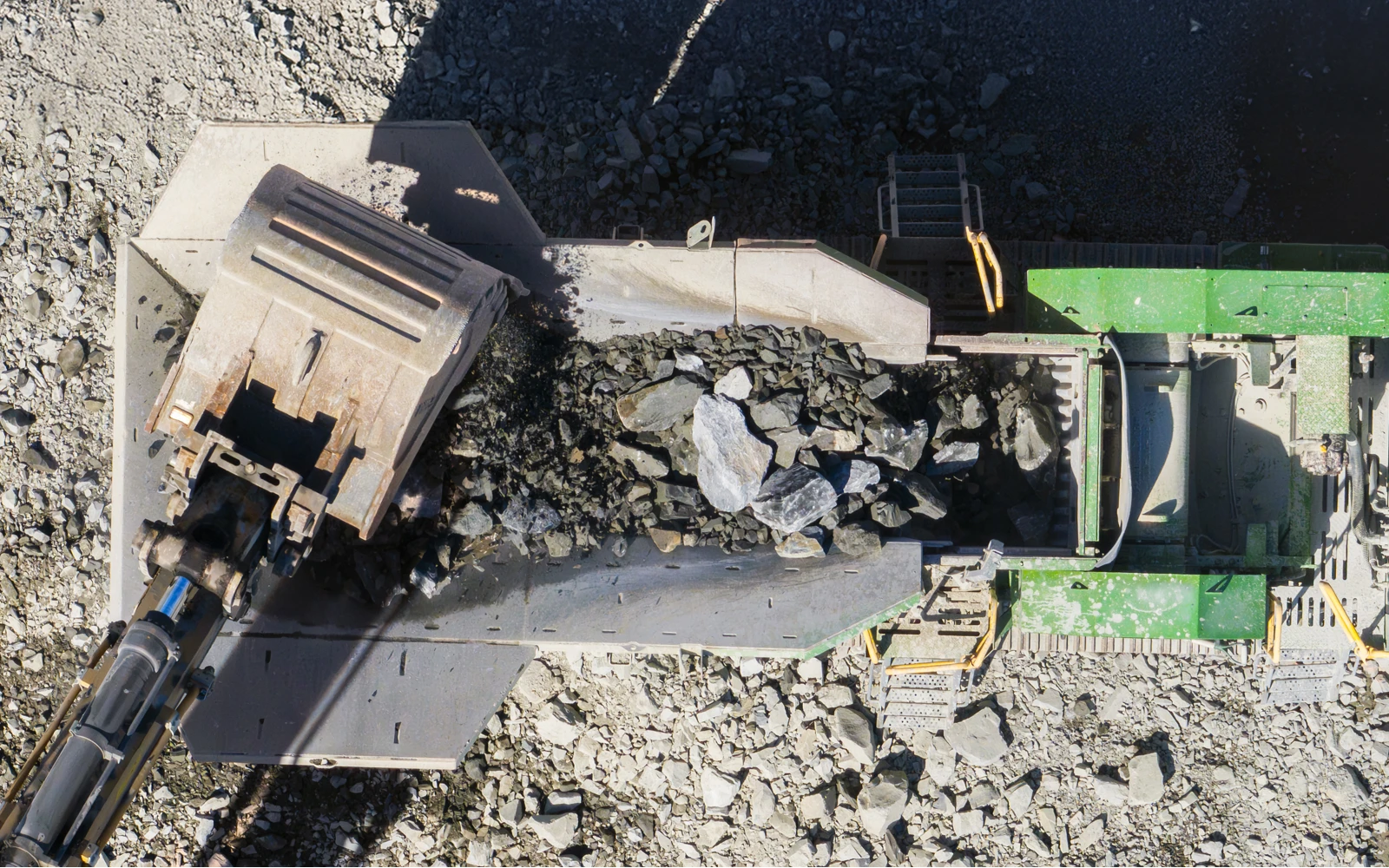

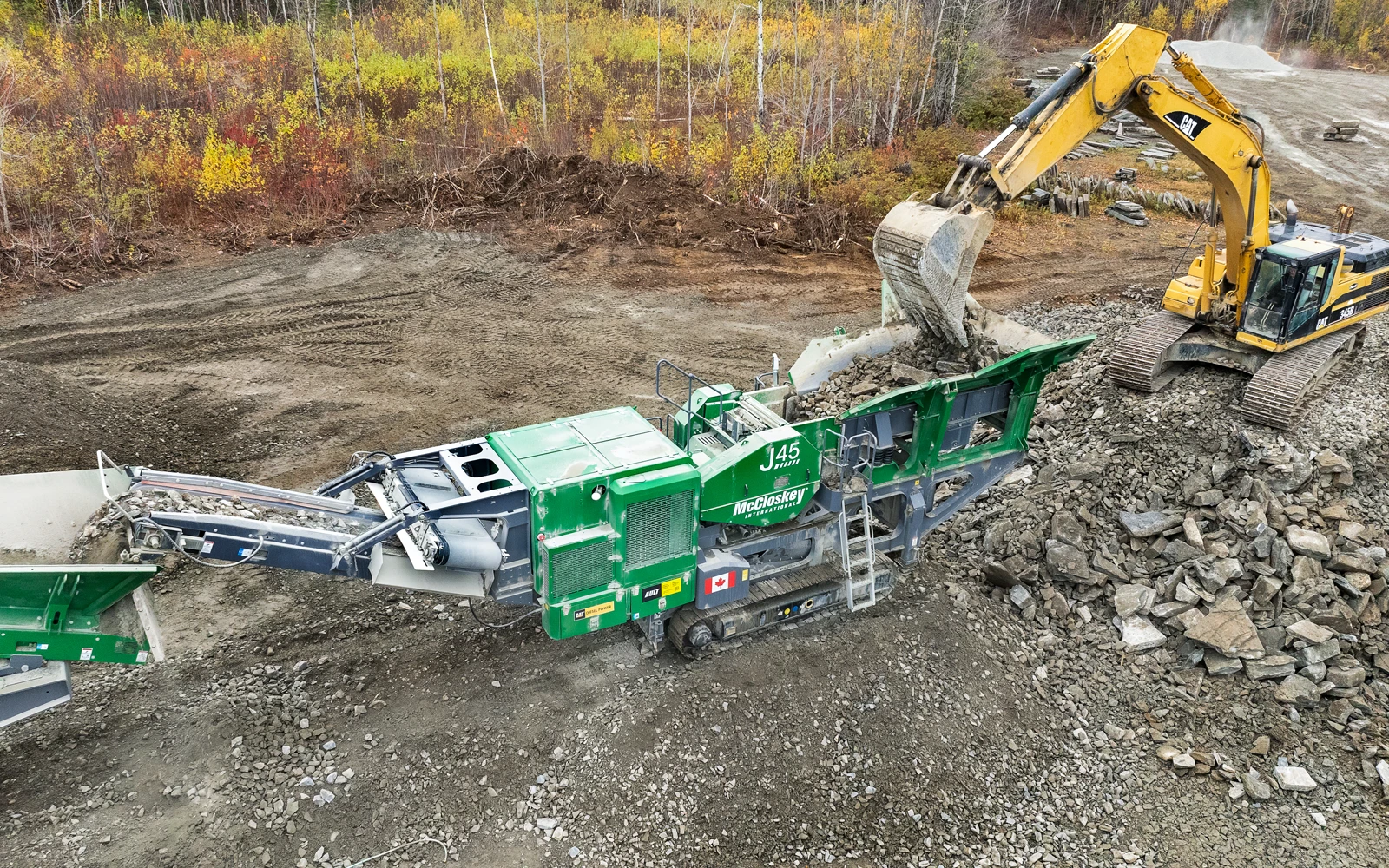

The McCloskey J45 high capacity Jaw Crushers feature a true 45” x 27” jaw. With both level and load sensors the J45 ensures the most efficient material handling across applications. Optimized for Type 1 crushing applications, the J45 features a heavy duty bofar design and pan feeder chutes with steeper angles to reduce material sticking. The J45 boasts a high capacity hopper with close to 8 cubic yards (6 m³) capacity mounted over a vibrating feeder. The main conveyor features easy access heavy duty skirting and is closer to the ground level for ease of access and maintenance. Rugged and versatile, the J45 offers field-tested reliability required for the toughest projects around the globe.

Call us to find out more
about our products and services.
Contact us
Not ready for a purchase ?
We have equipment for rent
shadow separator

Specifications

  • Power pack: Volvo D11 (360 hp) / CAT (350 hp)
  • Jaw: 27″x45″ (680 mm x 1 140 mm)
  • Hopper : 8 yd³ (6 m³)
  • Main conveyor: 42″ (1 060 mm)
  • Discharge height: 13’ (3.9 m)
  • Length: 47’ 6″(14.5 m)
  • Width: 8’ 2″ (2.5 m)
  • Height: 11’ 2″ (3.4 m)
  • Weight: 103 400 lbs (47 000 kg)
